and various event venues.

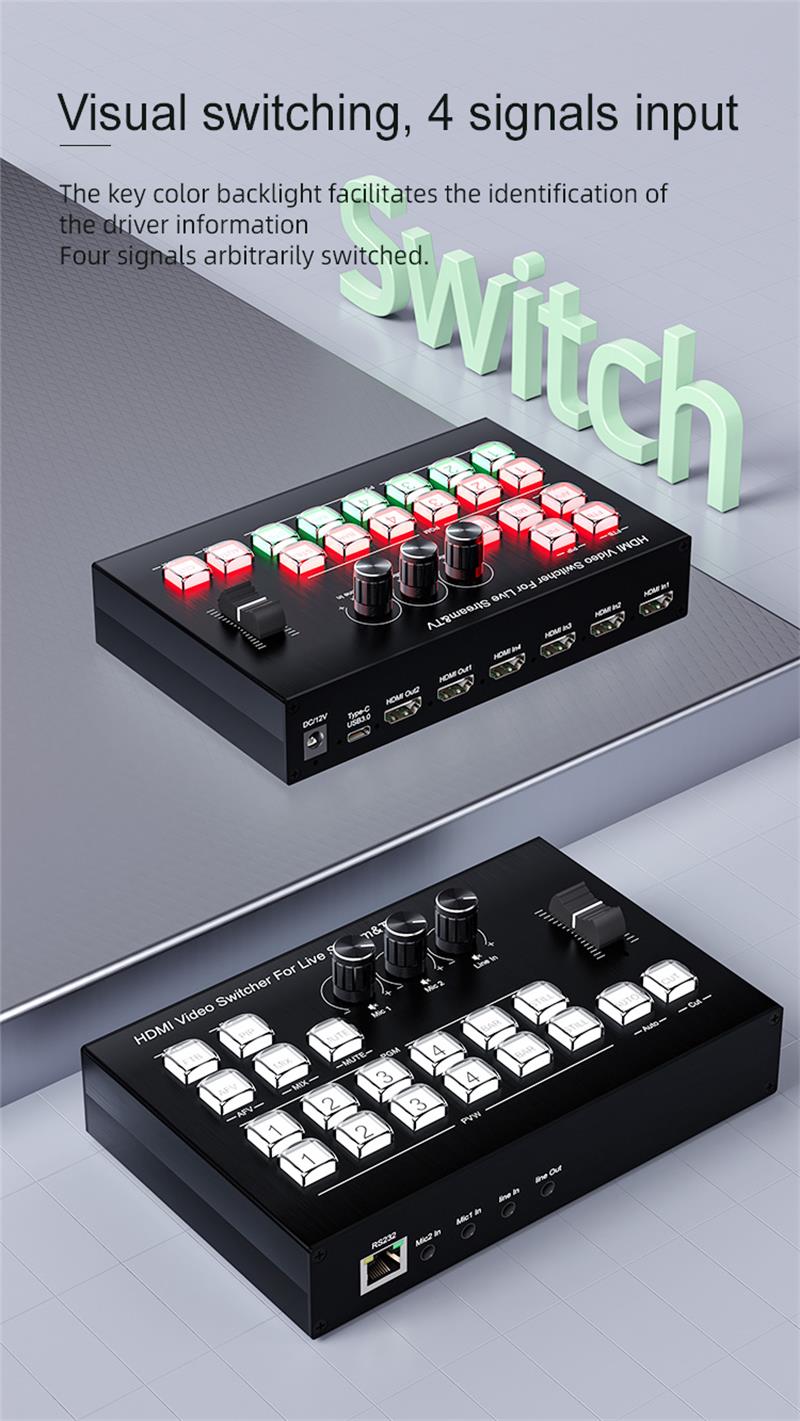

1. 4 HDMI input; 2 HDMI output;
2. 1 Type-C acquisition interface;
3. Support OSD display input channel signal, resolution information, volume information;
4. Support MIC,LINE IN,HD mixing output
5. Support HD mixing and audio following (fixed following PGM);
6. Support LINE OUT and HD audio output;
7. Support power-off save Settings;
8. High quality keys, color backlight design
Specifications:
1: DC/12V -- power input port;
2: Type-c USB3.0 -- Type-C capture port, output a single image (PGM);
3: HDMI Out2 -- HDMI signal output port, output a single image (PGM);
4: HDMI Out1 -- HDMI signal output port, output 6 split images;
5: HDMI In4-1 -- HDMI signal input ports 4-1;
6: RS232 -- RS232 serial port control;
7: Mic2-1 In -- Microphone input port 2-1;
8: line In -- analog audio input port;
9: line Out: analog audio output port
HDMI input resolution .......................................................................... Up to 1080P@60Hz
HDMI output resolution ................................................................................. 1080P@60Hz
Supports audio format ................................................................................................. PCM
The maximum bandwidth transmission ................................................................. 340MHz
Maximum transmission rate .............................................................................. 3.4 x3Gbps
The input cable length ........................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length ......................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
Maximum working current ........................................................................................... 0.7 A
Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
Working temperature range ....................................................................... (-15℃ to +55℃)
Size .......................................................................................................... 180x115x52(mm)
The weight ................................................................................................................... 510g

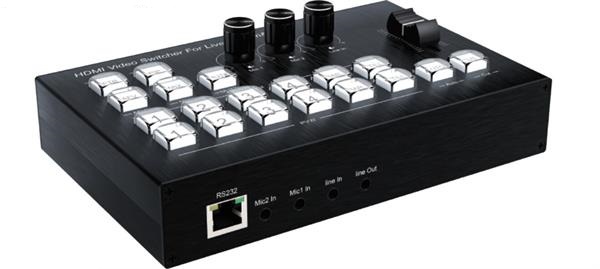

Physical interface diagram
1: DC/12V -- power input port;
2: Type-c USB3.0 -- Type-C capture port, output a single image (PGM);
3: HDMI Out2 -- HDMI signal output port, output a single image (PGM);
4: HDMI Out1 -- HDMI signal output port, output 6 split images;
5: HDMI In4-1 -- HDMI signal input ports 4-1;
6: RS232 -- RS232 serial port control;
7: Mic2-1 In -- Microphone input port 2-1;
8: line In -- analog audio input port;
9: line Out: analog audio output port

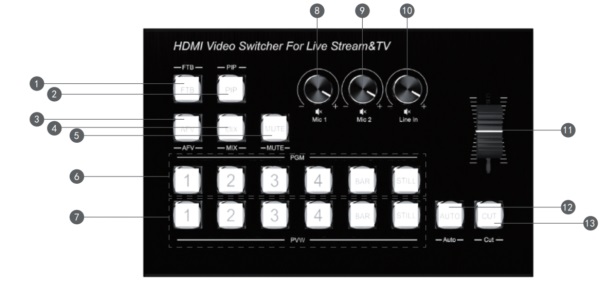

Panel buttons function description:
1: FTB -- PGM turns on or off to black screen
2: PIP -- Enter or exit picture-in-picture mode
(PGM background, PVW small image, audio follows PGM);
3: AFV -- audio follows PGM image;
4: MIX -- Audio mix (MIC1-2/Line in/HD);
5: MUTE -- Turn on or off the mute;
6: PGM_1 -- PGM image switched to HD1; PGM_2 -- PGM image switched to HD2;
PGM_3 -- PGM image switched to HD3; PGM_4 -- PGM image switched to HD4;
BAR -- PGM blue image turn on or off;
STILL -- PGM image is frozen or unfrozen;
7: PVW_1 -- PVW image switched to HD1; PVW_2 -- PVW image switched to HD2;
PVW_3 -- PVW image switched to HD3; PVW_4 -- PVW image switched to HD4;
BAR -- PVW blue image turn on or off;
STILL -- PVW image is frozen or unfrozen;
8: Mic1 -- Tap MIC 1 to turn on or off the Input volume, rotate to adjust the volume.
9: Mic2 -- Tap MIC 2 to turn on or off the Input volume, rotate to adjust the volume.
10: Line In -- Tap to turn on or off analog audio input , rotate to adjust the volume;
11: Slider key - Fade in and out between PVW and PGM image;
12: Auto -- Fade in and out between PGM and PVW image;
13: Cut -- Quick switch between PGM and PVW image;

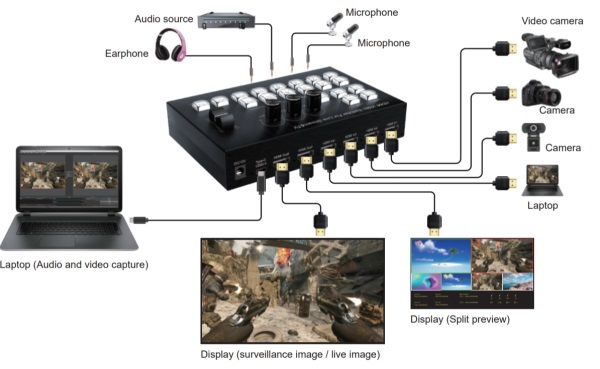

Application diagrams :
Packing include:
1. Video switcher for live streaming 1PC
2. 1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs) 1PC
3. DC/12V power adapter 1PC
4. User manual 1PC
