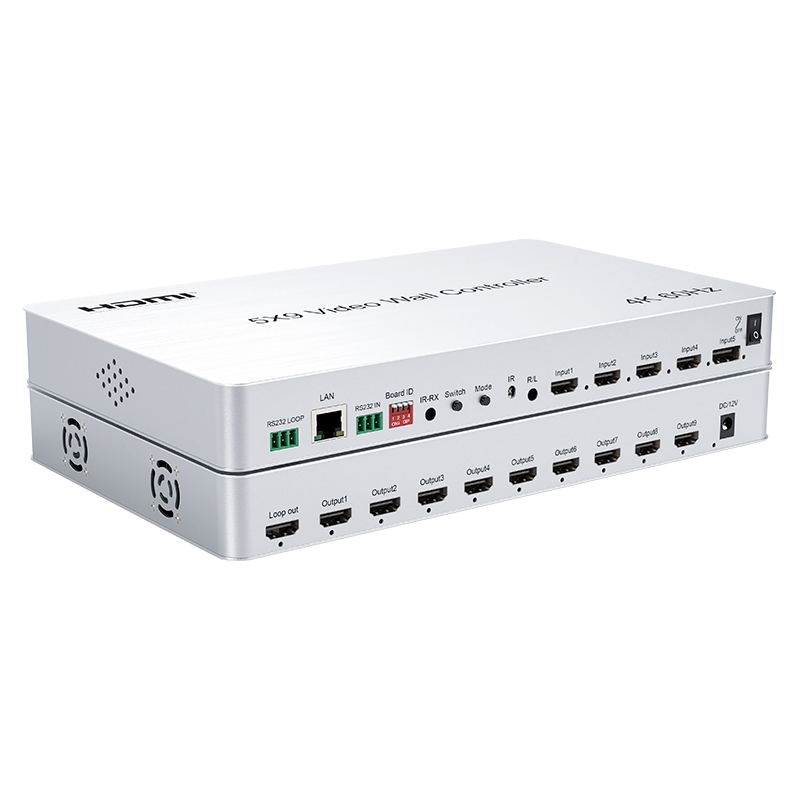

The 5x9 video wall controller support 4 way hdmi/1way DP input,10 way hdmi output,the
main function is to divide a complete hdmi HD image signal into 9 pieces and then be
assigned to 9 video display unit((such as Rear projection unit, LCD TV, etc).Complete with
9 HDMI high-definition video display units to form a large dynamic image screen.
At the same time, the 4-way hdmi HD signal can be displayed on the screen, and has a
variety of video segmentation effects.
It is mainly used in ultra-high definition video surveillance, large screen wall, store
advertising screen, exhibition screen and other industry applications
Features
1. Supports 4way hdmi input (1way 4k@60hz, 3way 4k@30hz), 1way dp input (4k@60hz),
and 9way hdmi output (1080p@60hz),1 hdmi loopout (picture is consistent with the
splicing picture),one 3.5mm headphones stereo output.
2. Single device, 5 in 9 out (1x1~4x4 compatible),various splicing modes: horizontal /
vertical / 2x2,and support the large-scale cascade and parallel use with loopout port.
3. Maximum full screen 4 segmentation, support a variety of segmentation modes(Single
picture, double picture with picture in picture, four picture segmentation),any input source
channels can be allocated to the split screen.
4. Input resolution up to 3840x2160@60Hz,down ward compatible,one output resolution
support up to 1920x1080@60hz(Output supports custom standard resolution).
5. Input supports full-screen 90°rotation (support only single-screen mode ),the output
supports the first row of 180 ° rotation(Support only in splicing mode when two rows)
6. No stretching, no deformation, no need to compress the input source, the picture is clear.
7. Support for remote control, button, RS232 control.
