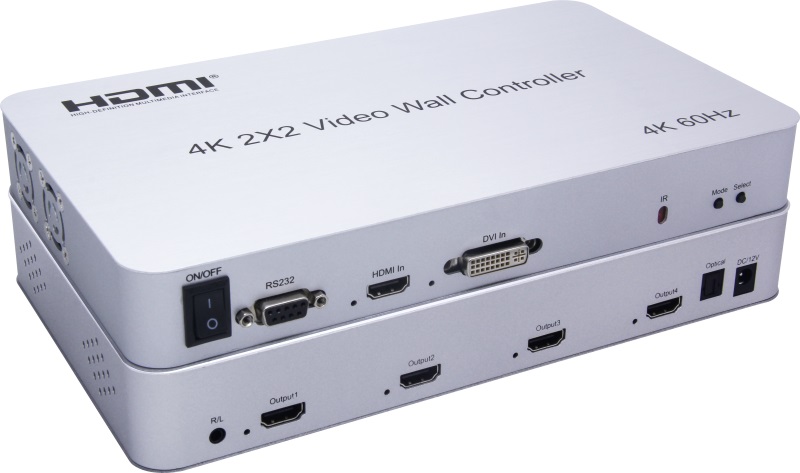

4K 2X2 Video Wall Controller Supports 3.5mm Audio Output
Introduction:
The 4K 2x2 video wall controller,support 1-way HDMI or DVI input and 4 HDMI output,
the main function is to divide a complete HDMI/DVI HD image signal into 4 blocks and
assign to 4 video display unit (such as Rear projection unit, LCD TV, etc.), complete
with 4 HDMI high-definition video display units to form a large dynamic image screen.
Features:
1. Support 4 HDMI outputs,and 3.5mm audio output;
2. Input resolution include 1920x1080P 25/30/50/60Hz,3840x2160P 60Hz;
3. Output resolution include 3840x2160P 60Hz or 1920x1080P 60Hz;
4. Input format: YUV4:2:2 24bit、YUV4:4:4 24bit、YUV4:2:0 24bit、RGB4:4:4 24bit;;
Output format: RGB4:4:4 24bit;
5. Support RS232 protocol (Net port RJ45);
6. Easy to operate, plug and play;
7. Support rotation of 90 degrees,180degrees,270degrees; |
