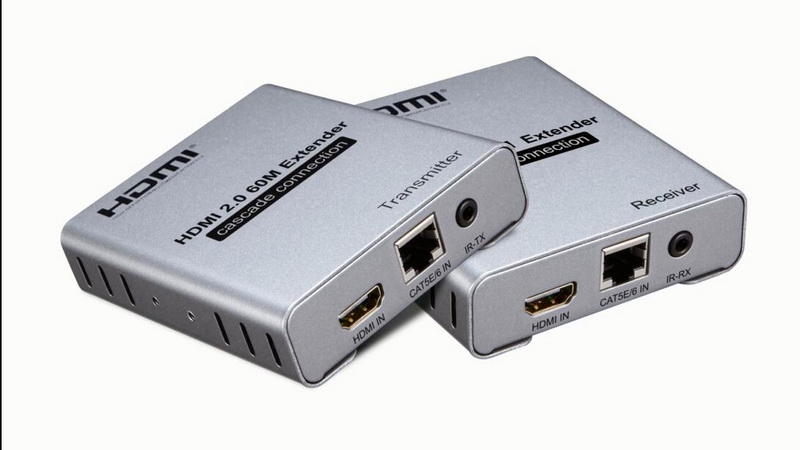

HDMI 2.0 60M Extender Supports cascade Connection and Local Loop Out HE0060V2.0-CL
Product Description
：
HDMI 2.0 60M Extender Supports cascade Connection and Local Loop Out
Introduction
The HDMI 2.0 60m extender uses single cat-5E or cat-6(recommended) cable instead of HDMI cable, you can extend the HDMI 2.0 4K@60Hz signal to 60 meters.or 4K@30Hz and 1080P singal to 120 meters.The purpose of the extender is to achieve long-distance signal transmission with low-cost wires.
Features
1：4K 60Hz 60M long distance transmission：
2：Multi-receiver cascade transmission：
3：Low power consumption, low temperature and high safety.
4：Support HDCP2.2 or below.
Specifications
Length of CAT-5E/CAT-6 cable between Rx and TX: up to 60 meters
HDMI input: K/1080p/720p/576p/576i/480p/480i
Support audio format: DTS/Dolby/LPCM
HDMI output: K/1080p/720p/576p/576i/480p/480i
Max bandwidth: 600MHz
Max baud rate: 6Gbps x3
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Input HDMI cable distance ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ≤10m AWG26 HDMI standard cable
TX Max working current: 350mA
RX Max working current: 200mA
Power adapter format Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55℃)
Operating Humidity range: 5% to 90%RH (No Condensation)
Dimension (L x W x H): 94x84x24(mm)
TX Weight: 223g
RX Weight: 223g
Application diagrams
HDMI extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on.
Connection diagrams
Connection and operation
1. Connect source device with transmitter by one HDMI cable, the cable max length is 10 meters.
2. Connect display device with receiver by one HDMI cable, the cable max length is 10 meters.
3. Connect TX with RX by one cat5e or cat 6(recommended), the cable max length is 60 meters.
4. One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.
5. Connect the power supply to the TX and RX.
6.LED indicator:
When the HDMI indicator is on, it indicates that the HDMI signal input , and the RJ45 indicator is on, indicating that the network port signal input .
