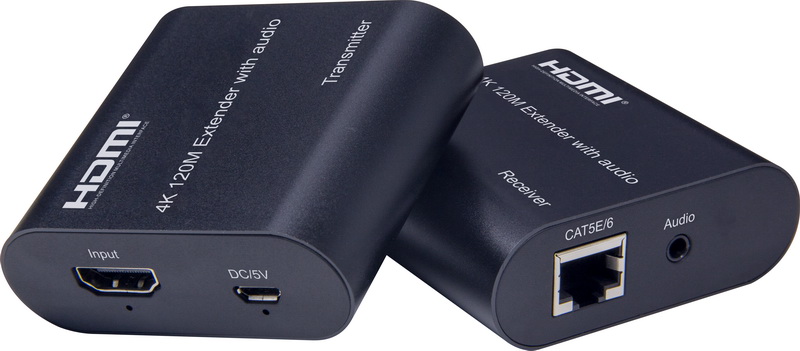

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to
transmit high definition signal up to 120 meters, it is designed to supply for long distance
transmission of high definition signal.
* Low power consumption, low temperature and high safety;
Specifications:
Connection diagram:
Length of CAT5e/CAT6 cable between RX and TX …………….......................... 120 meters
HDMI Input …..…………………...………..................... 4k/1080p/720p/576p/576i/480p/480i
HDMI Output …..…………….….................................. 4k/1080p/720p/576p/576i/480p/480i
Max bandwidth ………………………………………………………………………….. 340MHz
Max baud rate ……………….…….………………….………….…………………... 3x3.4Gbps
Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p
Output DDC signal …………………………………………………................. 5Volts p-p (TTL)
Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable
TX max working current ………………………………………...………….……………. 500mA
RX max working current …………………………………………...…………………….. 300mA
Operating temperature range ……..…………….……………………….......…… (0 to +45℃)
Operating humidity range ………………………….…..…… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………........……… 64x59x22(mm)
TX weight …..……………………………………………..……………………….........…… 53g
RX weight ..................................................................................................................... 53g
Connecting and Operating:
1.Connect one HDMI cable between source device and TX Extender, the max cable
distance is 10 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable
distance is 10 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between
TX and RX Extender, the max cable distance is 120 meters
4.Connect 5V power supply to the TX and RX.
6.EDID button: The button can support the switch of EDID between 1080P and 4K.(4K is
the default EDID when the power is on).
Connection diagram:
Application diagrams
HDMI extender is used in audio-visual conference, command and control center, ticketing
platform, home theater, multi-media teaching, conference system and so on.
Physical interface diagram:
Package including:
1. TX extender 1PCS
2. RX extender 1PCS
3. Micro USB Cable 2PCS
4.User Manual 1PCS
