the major projects, meeting halls and other places.
* More clearer subtitles
Specifications
HDMI input resolution …………………....………...1080P,720P,1080i,1024x768,1360x768 etc.
HDMI output resolution …….........................................…1080P@60HZ, 2560x1600@60HZ,
2560x1440@60HZ, 3840x2160@30HZ.
Input and output cable distance …………….....…...….…. ≤15M AWG26 HDMI standard cable
Power adapter format ........................ Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/2A
Operating Temperature range ……..…............……………………...…………… (-15℃to +55℃)
Dimension (L x W x H) .......................………………….………...………….… 460x150x40 (mm)
Weight …..………...……………………….........………………..…...….……………………… 1.7g

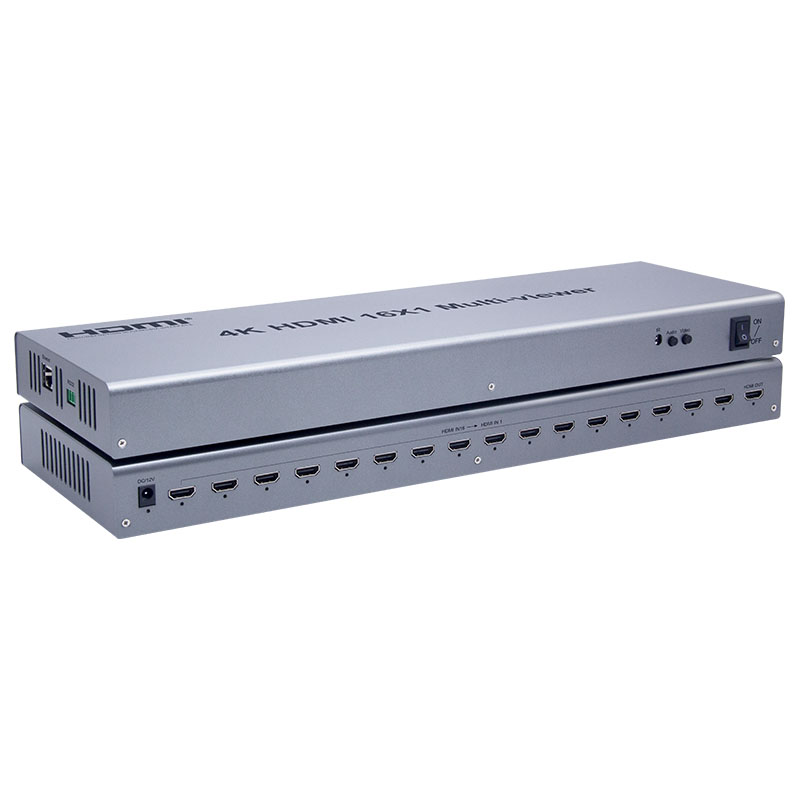

Function Interface Figure:
1：DC/12V --- DC/12V power interface
2：HDMI IN8 → HDMI IN1 ---Input interface
3：HDMI OUT --- Output interface
4：Ethernet --- Ethernet interface
5：RS232 --- RS232 interface
6：IR --- IR receive
7：Audio --- Audio mode switching
8：Video --- Video mode switching
9：ON/OFF --- Power switch
Connection diagram：
MODE1：Single image display mode（Channel 1-16 seamless switch）
MODE2&MODE3：Dual image display mode
MODE4：Quad display mode
MODE5：2 big -6 small display mode
MODE6：8 Image display mode
MODE7：8 Image display mode （without stretcher strain）
MODE8：4 big -12 small display mode
MODE9: 16 Image display mode
Operating steps:
Package include :
Step 1 : Connecting HDMI OUT with displayer, HDMI input 1~16 with source;
Step 2 : Connecting power, and turn on the Multi-viewer;
Step 3 : Please setting the resolution of output as 1080P with remote control if the
displayer support 1080P resolution only.
More clearer subtitles
Package include :
1. 4k HDMI 16x1 multi-viewer 1PCS
2. 12V/ 2A power adapter 1PCS
3. Remote control 1PCS
4. User manual 1PCS
