4k 3x3 HDMI Video Wall Controller Cascading Modes
Introduction
The 4K 3x3 video wall controller , support 1-way HDMI input and 9-way HDMI outputs,
the main function is to divide a complete HD image signal into 9 blocks and assign to 9
video display units(such as Rear projection unit, LCD TV, etc.), Complete with 9 HDMI
high-definition video display units to form a large dynamic image screen.
As a video wall controller, It support display a single complete picture with HD multiple
splicing modes, compose a video wall perfectly without any control software, plug and play,
easy to operate.
It was widely used in occasion of advertising screen, restaurant, teaching,etc..
Features
* Support HDMI input；
* Support 9 HDMI outputs；
* Support multiple splicing modes, easy to operate, plug and play；
* Support 8/10/12 bit deep color;
* Support IR control.
Specifications
HDMI input resolution ……………………………….... the highest support 3840x2160/30Hz
HDMI output resolution ………………………………... the highest support1920x1080/60Hz
Support audio format ………………..……................................................................... stereo
Input cable length ......................................................... ≤8m AWG26 HDMI standard cable
Output cable length ………………….…………............ ≤10M,AWG26 HDMI standard cable
Max working current ………………………………….....................………...……........... 1.6 A
Power adapter specifications ….......................……...... input AC (50HZ, 60HZ) 100V-240V
Output 12V DC/3A
Operating Temperature range …………………………………………........... (-10℃～ +45℃)
Dimension (L x W x H) ………………………………...……………............. 305x185x35(mm)
Weight ….…..……………………………………………..........................…................... 1747g
Remote Control
Connecting diagram:
Operation Steps:

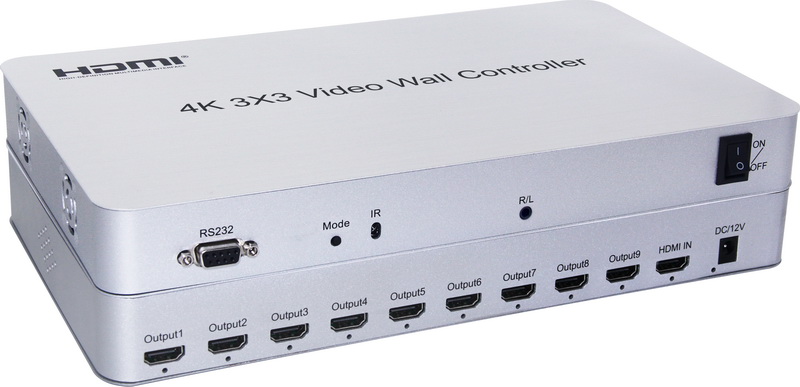

Physical interface diagram:
Cascading modes:
|
