2X4 HDMI 2.0 Switch/Splitter Supports  the 3.5mm and SPDIF Audio Output

Introduction :

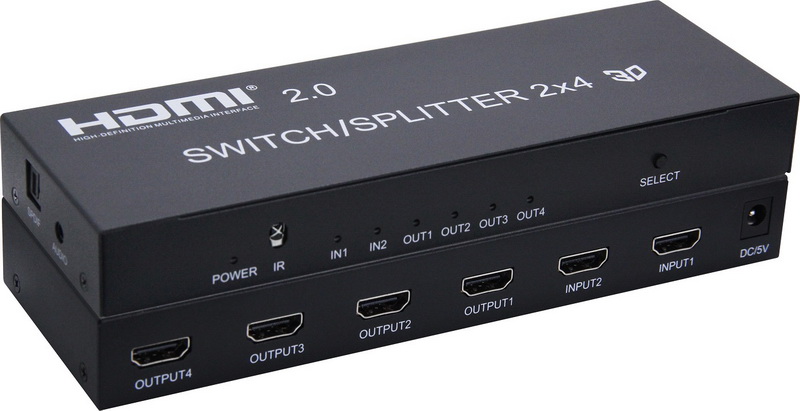

The 2 x 4 HDMI 2.0 switch splitter can connect 2 hd signal sources to 4 hd display terminals.

It can easily split the 2 hd signals generated by the 2 hd signal sources to 4 hd displayers or projectors.In addition, when connect it to a HDMI output cable, it can amplify the HDMI singal. The 2 signal sources can be switched freely.The HDMI splitter can support all hd multichannel audio formats including 720p, 1080i, 1080p,2160p@30Hz,2160p@60Hz. It also supports the 3.5 mm audio output and SPDIF audio output.

Features:

1.Downscaling (can output 4K and 1080p at the same time)
2.High Definition,it can support 4K/60Hz RGB/YUV 4:4:4
3. Transmission long distance,4K/60Hz up to 10meters,1080p up to 20meters

Specifications:

HDMI version HDMI 2.0a

HDMI resolution up to 3840*2160/60Hz

Support video color format 8/10/12 bit deep color

Support audio format… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth… 600MHz

Max baud rate… 6Gbps

Input cable dista… (1080p resolution) ≤20m,(4K resolution)≤10m

AWG26 HDMI standard cable

Output cable distance… (1080p resolution) ≤20m, (4K resolution)≤10m

AWG26 HDMI standard cable

Max working current… 500mA

Power adapter format. Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range… (-15℃to +55℃)

Dimension (L x W x H). 200x70x25 (mm)

Weight… 280g


Operating and Connecting

IR Remote Control:

1) Press the key 1 to switch to the input 1, “IN1” indicator turns red

2) Press the key 2 to switch to the input 2, “IN2” indicator turns blue

Channel switching operations:

Press the “Select” button of the switcher for around 5 seconds, can switch between 5.1 and 2.1 audio channel.

Application diagrams
