2x2 HDMI 2.0 Switcher/Splitter Support 4kx2k@60Hz HD0202SSV2.0
Product Description
：
2x2 HDMI 2.0 Switcher/Splitter Support 4kx2k@60Hz
Introduction :
This 2x2 HDMI 2.0 Switcher/Splitter can connect two HD signal sources with two HD display terminals, it allows two HDMI signals to be split or switched to two HDMI compatible monitors or projectors. And it can amplify your HDMI signals at the same time.
This two singal sources can be switched freely via button or remote control. The HDMI Switcher/Splitter 2x2 can support full HD video format, highest resolution 3840x2160/60Hz。
Features :
1.Downscaling (can output 4K and 1080p at the same time) 2.High Definition,it can support 4K/60Hz RGB/YUV 4:4:4
3. Transmission long distance,4K/60Hz up to 10meters,1080p up to 20meters
SPECIFICATIONS :
HDMI version HDMI 2.0a
HDMI resolution Up to 3840x2160/60Hz
Support video format 8/10/12 bit deep color
Support audio format… DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth… 600MHz
Max baud rate… 6Gbps
Input cable distance. (1080p resolution)≤20m,(4K
resolution)≤10m AWG26 HDMI standard cable
Output cable distance… (1080p resolution)≤20m,(4K
resolution)≤10m AWG26 HDMI standard cable
HDMI Input Port. 2
HDMI Output Port. 2
Max working current… 300mA
Power adapter format. Input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
Operating Temperature range… (-15℃ to +55℃)
Operating Humidity range. 5 to 90%RH (No Condensation)
Dimension (L x W x H). 128x53x20 (mm)
Weight… 140g

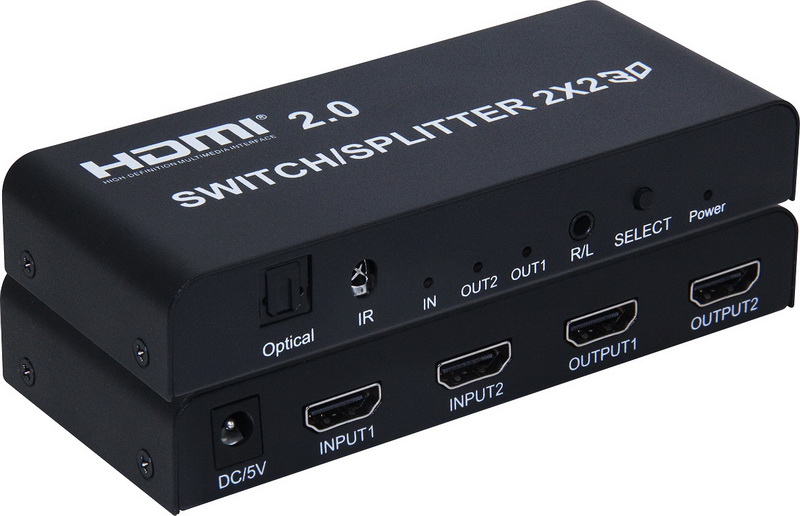

SPECIFICATIONS :
Port
Description
DC/5V
DC power input port,DC 5V power adapter
INPUT1
HDMI signal input port 1
INPUT2
HDMI signal input port 2
OUTPUT1
HDMI signal output port 1
OUTPUT2
HDMI signal output port 2
Optical
Digital audio optical output port
IR
IR remote control
IN
HDMI input indicator
OUT2
HDMI signal 2 output indicator
OUT1
HDMI signal 1 output indicator
R/L
3.5mm audio output port
SELECT
Switch input signal button
Power
Power indicato
IR Remote Control:
1) Press the key 1 to switch to the input 1, “IN” indicator turns red
2) Press the key 2 to switch to the input 2, “IN” indicator turns blue
Connecting diagrams:
Operating and Connecting ：
1: Connect HDMI source device and HDMI Switcher/Splitter input with two HDMI cables. 2: Connect displayer and HDMI Switcher/Splitter output with two HDMI cables.
3: Connect 5V/1A power adapter to the HDMI Switcher/Splitter.
