HDMI to COMPOSITE&S-VIDEO Converter
1.0 Introduction
The HDMI to COMPOSITE&S-VIDEO converter is designed to separate integrated HDMI audio/video signal to AV (CVBS) composite video signal and s-video signal, it also supports DVI system sideline signals conversion, helping user to convert HDMI video signal to normal CVBS signal (standard-definition 480i, 576i,). NTSC and PAL TV format all compatible.
1.1 Features
1. No need to install drivers, portable, flexible, plug and play.
2. Low power.
3. Support NTSC and PAL two standard TV formats
output
4. Compatible HDMI1.3
5. S-VIDEO(Y:1.0VPP;C:0.3VPP)
2.0 SPECIFICATIONS
1. Input ports: 1xHDMI.
2. Output ports: 1xRCA (Yellow, White, Red)+1xS-VIDEO
3. Dimensions (mm): 150(D) x73(W) x23(H)
4. Wight (g): 262
5. HDMI Input Resolution:
640x480@60Hz,800x600@60Hz, 1024x768@60Hz,1280x720@60Hz,
1280x1024@60Hz,1360x768@60Hz,
1600x1200@60Hz,1920x1080@60Hz,
480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,
720p50/60Hz,1080I50/60Hz, 1080p50/60Hz.
6. CVBS output: PAL, NTSC_M, and (NTSC_J)
3.0 PACKAGE CONTENTS
Before using please check if all accessories are contained in the package:
1) Main unit --------------------------------------------1PCS
2) Power Adaptor 5V1A---------------------------------1PCS
3) AV Cable------------------------------------------------1PCS
4) S-VIDEO Cable----------------------------------------1PCS
3) User Manual. -------------------------------------------1PCS

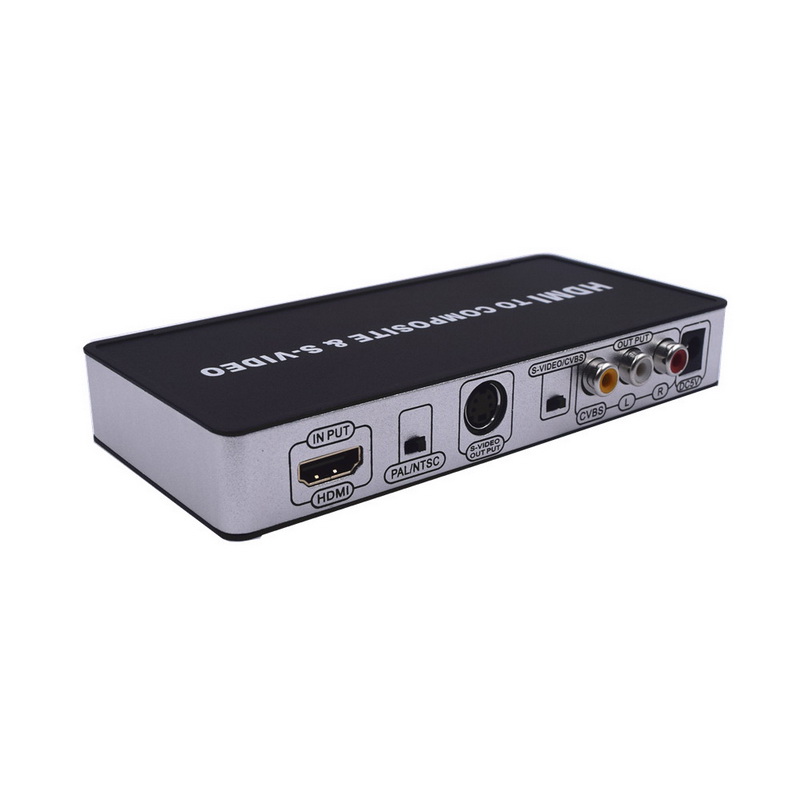

4.0 PANEL DESCRIPTIONS
Please study the panel illustration below to have a basic knowledge about terminals of input and output and power requirement.
(4)Selet S-video or CVBS as output; (5)Composite OUTPUT;(6)DC POWER 5V
5.0 CONNECTION DIAGRAM
1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the Converter HDMI input.
2. Connect a display such as an TV or Projector to the AV or S-VIDEO output on the Converter.
3. Power on the device and display.
(1) HDMI INPUT; (2)Selet PAL or NTSC; (3)S-VIDEO OUTPUT;
