The 2 Port HDMI Audio Extractor can allow two HD Display/TV connected to one HDMI Source and also can extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or 2 channel analog audio output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format output. It is one perfect audio extractor for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.
FEATURES:
1. 1X HDMI input and 2X HDMI output,can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
2. Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
3. Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
4. Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
5. LED indication: when source or sink is working, LED relative to is light.
6. Uses 24bit /192KHz DAC
7. No loss of quality
8. Installs in minutes
9. DC5V/1A power adapter
PACKAGE CONTENTS:
1. Main unit 1pcs
2. AC power adapter 1pcs
3. User manual 1pcs
FEATURES OF THE INTERFACE:

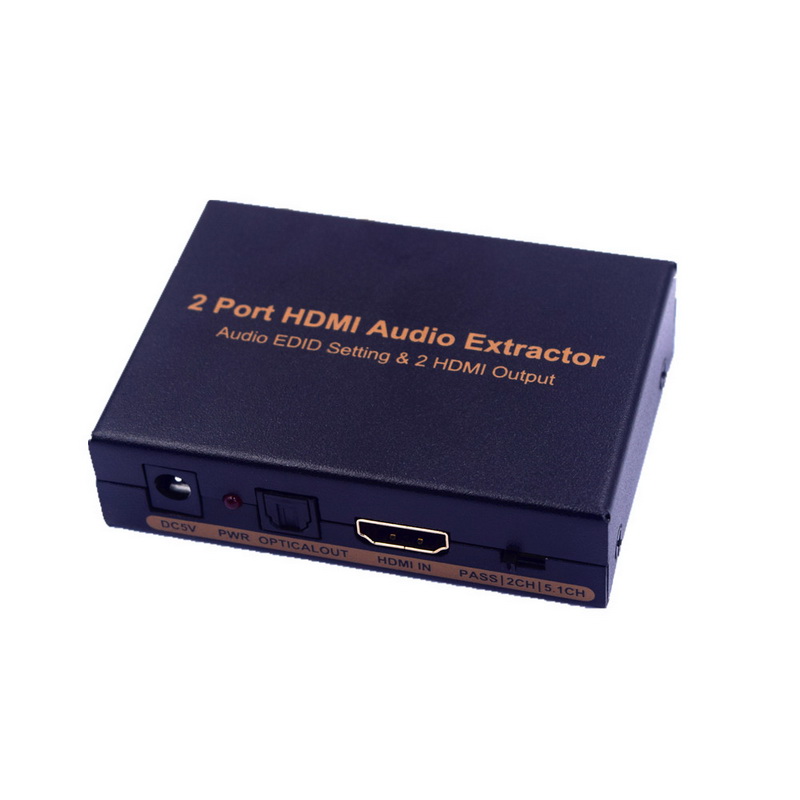

FIG.1.0 Front Panel View
DC5V: 5V DC in jack
OPTICALOUT: SPDIF Optical/Toslink output
PWR LED:POWER ON/OFF indicator
HDMI IN: HDMI input
SWITCH: Audio EDID mode switch. This switch allows users to select the source's audio EDID.
PASS:HDMI pass mode. Switch to PASS mode for the HDMI source to output audio per the
EDID of connected TV or AV receiver supports up to LPCM 5.1 channels.
2CH:2CH LPCM mode. Switch to 2CH mode for the HDMI source to output LPCM 2 channels
audio per the built-in EDID. Then HDMI, SPDIF, RCA and headphones output stereo audio.
5.1CH:5.1CH bitstream Mode. Switch to 5.1CH mode for the HDMI source to output bitstream
audio per the built-in EDID. Then HDMI, SPDIF and RCA output 5.1CH audio, the headphone output audio comes from L and R channel
FIG.1.1 Rear Panel View
HDMI OUT1/2: HDMI output
L-OUT-R: Stereo analog audio output
GREEN LED:HDMI OUTPUT indicator
OPERATIONG AND CONNECTION:
1. Connect one HDMI cable from a DVD/Blu-ray player into the HDMI input port of extractor.
2. Connect one HDMI cable from TV/Monitor into the HDMI output port of extractor.
3. If you need a digital audio, connect one optical fiber from digital power amplifier into the SPDIF
output port of extractor.
4. If you need an analog audio, Connect two AV cables from analog power amplifier/TV into the analog
audio output ports of Extractor, the channel must correspond, and switch EDID mode in 2CH.
5. Connect 5V power supply to the extractor and inserted into the power socket.
FIG.1.2 CONNECTION DIAGRAM
SPECIFICATIONS:
HDMI resolution …………………………........................................ up to 1080P/50/60fs(3D 24/30fs)
Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
2. All parts will be free from the strong shake, hit, fall.
3. Touching the power adaptor with the wet hands is prohibited.
4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
5. Pls turn the power off when the machines not used for long time.
6. Pls do not open the cover and do not touch the inside parts.
7. Pls use the original factory power adaptor.
FAQ:
Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:
No.
Problem Description
Solutions
1
Non-Power-Connected
1. Check if the power adaptor head is truly and correctly inserted the power socket.
2. Check the power if it is in on status.
2
No Sound/ Abnormal sound
1. Confirm the wires are intact and reliable connection.
2. Confirm the input audio format is supported formats.
3. Confirm the audio EDID mode switch setting.
4. Confirm the extractor / power amplifier / TV set volume and mute.
3
No Picture / Abnormal Picture
1. Pls to make sure that the TV / amplifier is on and has been connected with the machine.
2. Check the signal source output resolution, may be set too high.
