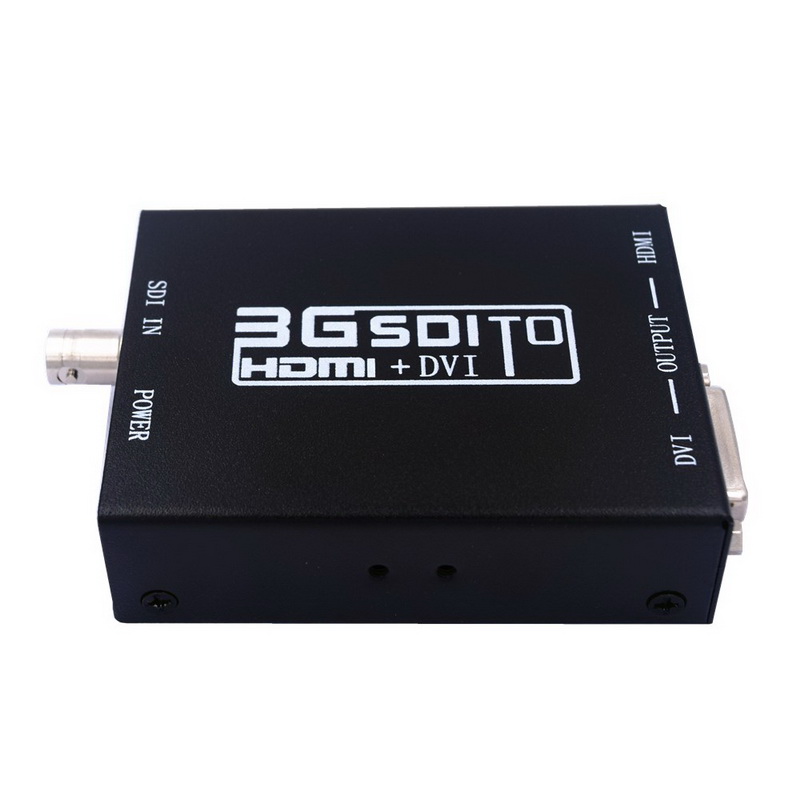

3G SDI to HDMI +DVI Converter
Introduction
The SDI to HDMI+DVI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI and DVI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI and DVI displays thanks to the built in HDMI converter.
Features
1. Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
2. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio
4. Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
5. Connect with other units to extend your signal over long distances
Package
1. 3G SDI to HDMI +DVI Converter---------------------------1PCS
2. Male DVI to Female HDMI Connector---------------------------------1PCS
3. 5V DC Power Supply Adaptor------------------------1PCS
4. Operation Manual --------------------------------------1PCS
Specificaitons
Input Port 1 x BNC (SDI/HD-SDI/3G-SDI)
Output Port 1 x HDMI;1 x DVI
SDI Transmission Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Power Supply DC 5V
ESD Protection Human body model ±8kV (air-gap discharge) ,
±4kV (contact discharge)
Dimension 110mm x 70mm x 25 mm
Weight 185g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W
Operation controls and Fuctions
SDI IN: This slot is where you connect the SDI source output .
POWER : Plug the 5V DC power supply into the unit.
HDMI : This slot is where you connect the HDMI display with HDMI cable.
DVI: This slot is where you connect the DVI display with DVI cable.
Application Example 1
Application Example 2
