I. Introduction

The MINI HDMI to SDI+Audio+Spdif Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. Also it allows 3.5mm audio and spdif signal output with poweramplifier and headphone.For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

II. Features

Shows HDMI source on SDI display. Extract audio from HDMI signal to 3.5mm and spdif.

SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

Converts HDMI signal to SDI:

480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

III. Package

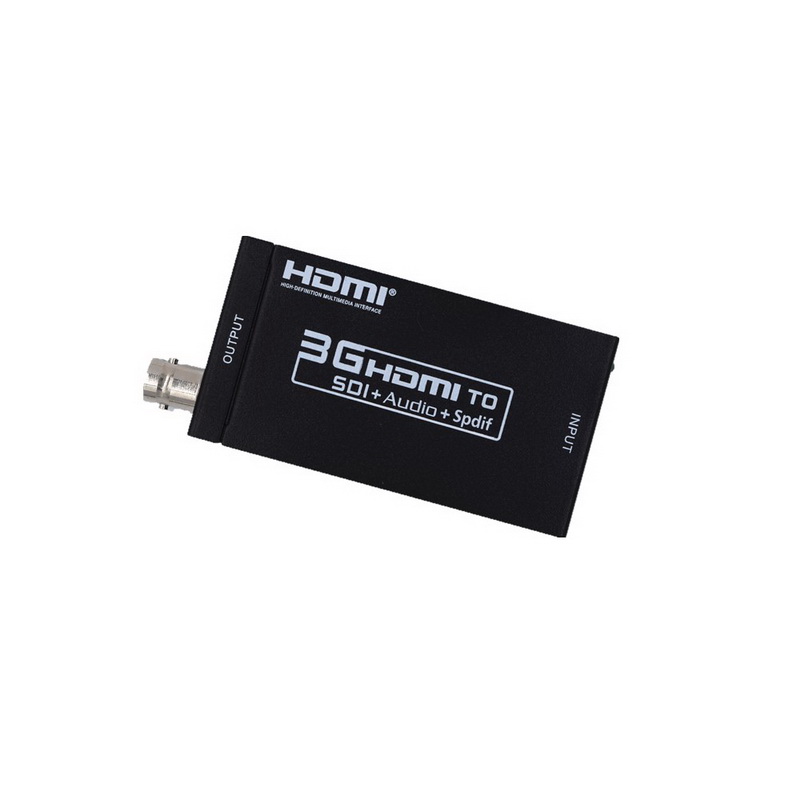

3G HDMI to SDI+Audio+Spdif Converter

5V1A DC Power Supply Adaptor

Operation Manual

IV. Specifications

Input Port     1 x HDMI

Output Port    1 x BNC (SDI/HD-SDI/3G-SDI) ;1x3.5mm audio;1xSpdif

SDI Transmission Rates  2.970 Gbit/s and 2.970/1.001 Gbit/s

In/Output Resolution    480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60

1080p@23.97/24/25/29.97/30/50/59.94/60

Power Supply DC 5V

ESD Protection Human body model    ±8kV (air-gap discharge) ,

±4kV (contact discharge)

Dimension                 80mm x 41mm x 25 mm

Weight   150g

Operating Temperature   0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature   -20°C ~ 60°C / -4°F ~ 140°F

elative Humidity              20 ~ 90% RH (Non-condensing)

Power Consumption (Max)   5W

V. Operation controls and Fuctions

DC 5V : Plug the 5V DC power supply into the unit.

HDMI : This slot is where you connect the HDMI source with HDMI cable.

LOCK :This LED illuminate when the device is connected with SDI.

PWR :This LED illuminate when the device is connected with power supply.

Audio :This slot is where you connect the audio output with 3.5mm cable.

Spdif :This slot is where you connect the spdif output with toslink/spdif cable.

SDI: This slot is where you connect the SDI display with coaxial cable .

VI. Application Example
