FEATURES

l One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output

l Output audio support: SPDIF+R/L analog Audio Output

l Input Resolution: up to 1080P(50/60Hz)

l HDMI to achieve the synchronization of audio signal separation. There are PASS /

2.0CH / 5.1CH three kinds of audio mode options

l LED indication: when source or sink is working, LED relative to is light.

l No loss of quality

l Installs in minutes

l Need DC5V/1A power supply

 The accessories:

1.5V Power Adaptor

2.one pc of Manual

 Power Adaptor

Physical Connection Showing Picture:

Figure 1.0 Front Panel Showing Picture

DC5V: 5V DC-DC Power Interface

PWR:Power Led Status Light

HDMI IN:HDMI input interface

SWITCH:Audio mode switch

               PASS:  HDMI pass mode. The audio and video from the HDMI output,

SPDIF and L/R no output.

2CH:   2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio.

5.1CH:  5.1 channel mode. The HDMI / SPDIF output 5.1 channel audio, L/R no

output.

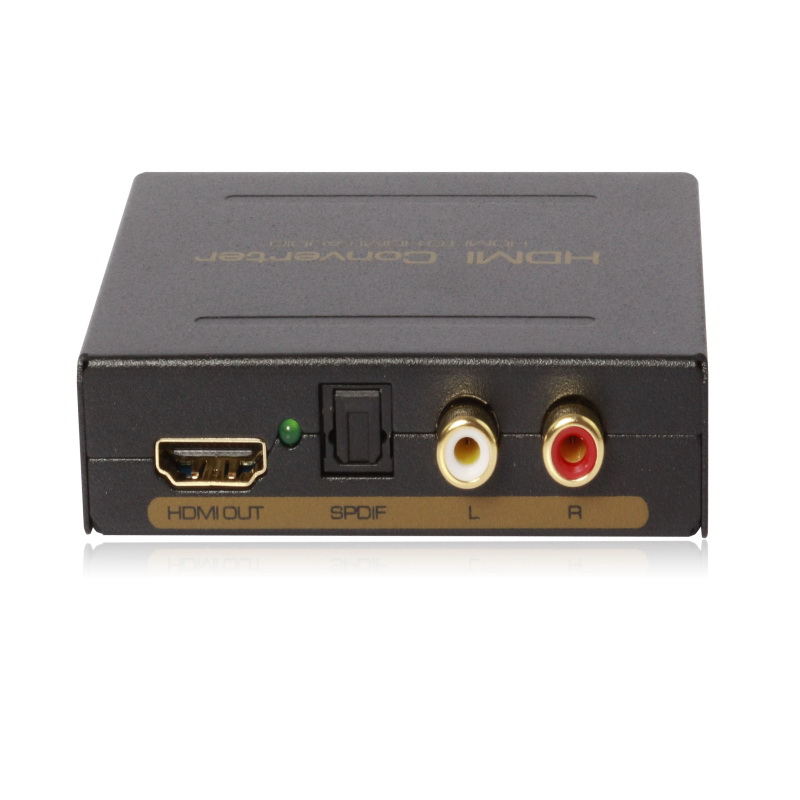

Figure 1.1 rear panel showing picture:

 HDMI OUT:HDMI output interface

GREEN LED:HDMI output led status light

SPDIF:SPDIF optical Output

L/R:Analog Sound Track(L/R) Output

 Operating and Connecting:

To use one hdmi cable to connect the HD Source with the input HDMI port.

To connect the converter hdmi output port with the HD Display.

To use one audio cable to connect the converter R/L port with the audio equipment.

To use the optical cable to connect the SPDIF port with the audio equipment.

To connect the converter with 5V DC power adaptor.

SPECIFICATIONS:

HDMI resolution …………………………...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…..………….24bit/deep color 30bit,36bit

Audio output……………………………………………………………………………. L/R+SPDIF

Max bandwidth………………………………………………………….………………….225MHz

Max baud rate…………………….………………….………………….………………..6.75Gbps

Input/Output TMDS signal ………….……………………………….……0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ………………………. ….…..≤15m AWG26 HDMI standard cable

Output cable distance……………………………….…...≤20m AWG26 HDMI standard cable

Max working current…………………………………………………………………………500mA

Power adapter format…………….…..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H) ……………………………….……………………84.5X61.8X21 (mm)

Weight…..………………………………………………………..…….……………………..…135g
