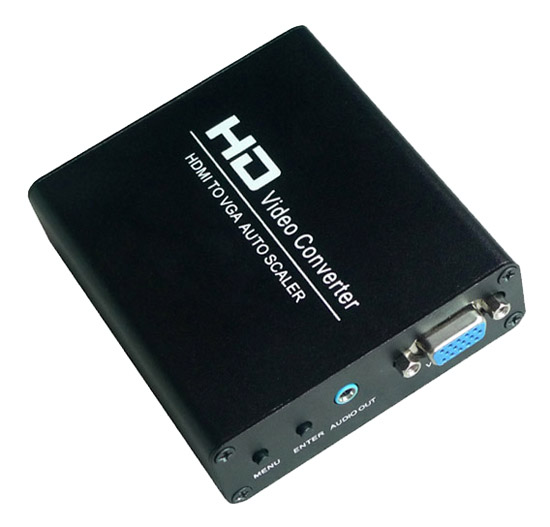

The HDMI to VGA Scaler converter converts digital HDMI signal to analog PC RGB signal. It allows you to connect the HDMI output from DVD or else Video equipments to the HD-15 VGA input of the tranditional monitors. Its high bandwith capability supports a wide range of PC and HDTV resolutions.

Features:

Professional universal scaler/deinterlacer for HDMI inputs

All inputs can be scaled to output resolution as below:

800x600@60Hz,1024x768@60Hz,1360x768@60Hz,1440x900@60Hz,

1280x1024@60Hz,1680x1050@60Hz,1600x1200@60Hz,1920x1080@60Hz,

1920x1200@60Hz,

Per-pixel motion compensated deinterlacing algorithms to produce artifact-free progressive scan video signal.

Frame rate conversion from 50Hz up to 60Hz (PAL), or 60Hz up to 60Hz.

Vertical temporal filter(VT) removes jaggy and other de-interlacing artifacts from normal video.

Built-in DCTI/DLTI circuit for color/luminance transient improvement.

OSD menu with adjustable VGA output resolution.

Specification:

 Input: HDMI connector.

Compliant with HDMI1.3

Output: Analog HD-15 ( RGBHV )

Output signal:

RGB: 0.7 Vp-p 75 ohm

H+V: 3 to 5 Vp-p

Operation frequency: up to 165MHz

Input resolution:

480i@60,576i@50,480P@60,576P@50,720P@60,720P@50,1080i@60,1080i@50,

1080P@60, 1080P@50,800x600@60Hz,1024x768@60Hz, 1280x1024@60Hz.

Output resolution:

800x600@60Hz,1024x768@60Hz,1360x768@60Hz,1440x900@60Hz,

1280x1024@60Hz,1680x1050@60Hz,1600x1200@60Hz,1920x1080@60Hz,

1920x1200@60Hz,

Power: 5V /1A Center-positive
