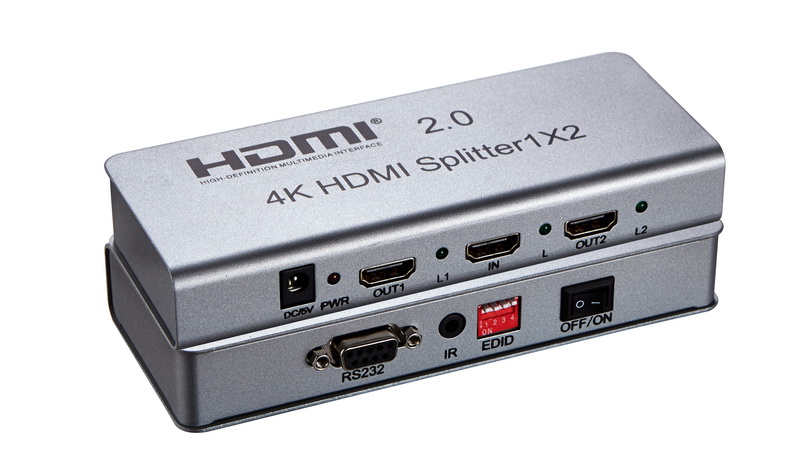

The 1x2 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI
device to be split easily to 2 HDMI compatible monitors or projectors. In addition,it can be placed at the
end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up
to 3840X2160/60Hz.
This product can support EDID management function, comes with eight kinds of EDID mode, the users
can choose according to their own needs. In addition, it is with built-in IR extension function,
it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command
to control the source.
FEATURES
1. Support HDMI 2.0 ,HDCP2.2
2. Support 3D video format
3. Support high resolution up to 3840X2160/60HZ
4. Support the max baud rate of 6G and TMDS clock can be up to 600 MHz
5. Support 8/10/12 bit deep color
6. Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
when the resolution is 4K, input up to 8 meters, output up to 8 meters.
7. Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player,
A/V receiver, set top box and etc.
8. Built-in IR extension function.( it can work with our hdmi 2.0 repeater which has IR-RX to
receive the IR command to remote control the source)
9. Support serial port online upgrade
10.Support EDID management
11.5V/2A power adapter
Specifications:
HDMI version ………………………………………………………………………………. HDMI 2.0
HDCP version ……………………………………….……………………………………. HDCP 2.2
HDMI resolution ……………………………….. ……….. ……….. …………up to 3840*2160/60Hz
Support video format ………………………………..…………………………8/10/12bit Deep color
Support audio format………………..………. …….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………………………………………….600MHz
Max baud rate……………….…….………………….…………………………………………..6Gbps
Input cable distance.…………………………….(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Output cable distance…………………………(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable
Max working current………………………………………………………………………………....1 A
Power adapter format………………….….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/2A
Operating Temperature range……………………………..…………….………………(-15 to +55℃)
Dimension (L x W x H)………………...............…………..……………………….154x60x24 (mm)
DIP 1 2 3 4
X 0 0 0 :copy output1 EDID only
X 0 0 1 : EDID MIX
X 0 1 0 : EDID Download (RS232)
X 0 1 1 : 4K X 2K 30Hz
X 1 0 0 : 4K X 2K 60Hz
X 1 0 1 : 1080P 3D 2ch
X 1 1 0 : 1080P 2D 2ch
X 1 1 1 : 1080P 2D 5.1ch
1 is used for upgrades, 1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)
Working Mode Description:
There are two working mode for product, normal working mode and upgrading mode, which is
decided by DIP EDID switch 1, 1 is upgrading mode,0 is normal working mode.
IR Extension description:
There is an IR TX Extension port, it can work with an optional HDMI 2.0 repeater which works as
IR-RX and IR extended via HDMI cable
Output port:
Only output1 can support CEC function, output 2 support IR extension function.
Connection and Operation:
1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the diaplays with 2 hdmi cables
