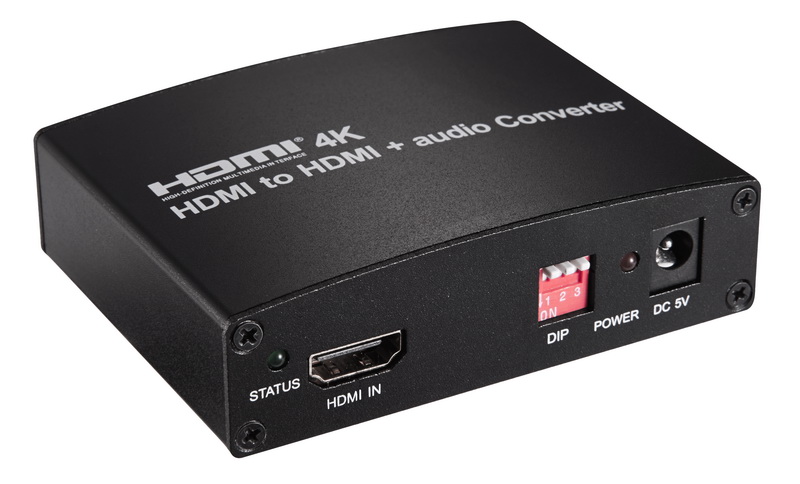

4K HDMI/MHL to HDMI+Audio(Optical/Coaxial/3.5MM) HDA1501
Product Description
:
HDMI to HDMI+audio converter (Support 4Kx2K ,Optical/Coaxial/3.5mm audio out ,EDID management )
4K HDMI to HDMI+audio converter
This HDMI to HDMI+audio converter converts the HDMI video signal to displayer/projector, and converts the stripped HDMI audio signal via the digital Optical/ Coaxial/3.5mm audio output to amplifer or speaker ,So that audio and video can be separated. the resolution of this converter can be up to 4096X2160/30Hz
Features:
1. Support HDMI1.4/HDCP1.4
2. Support 3D video format
3. Support highest resolution to 4096X2160
4. Support the max baud rate of 3G and the TMDS clock is 300Mhz
5. Support 8/10/12 bit deep color
6. Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 15 meters,output up to 15 meters.
when the resolution is 4K, input up to 10 meters, output up to 10 meters.
7. Support CEC control
8. Support MHL2.0
9. 5V/1A power adapter
Specifications:
HDMI version ……………………………………………………………………..…......... HDMI 1.4
HDMI resolution ……………………………….. ……….. ……….. ……………….up to 4096*2160
Support video format ………………………………..……………..….....…. 8/10/12 bit deep color
Support audio format………………..………. .....DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………………………………….….......300MHz
Max baud rate……………….…….………………….…………………………………..….......3 Gbps
