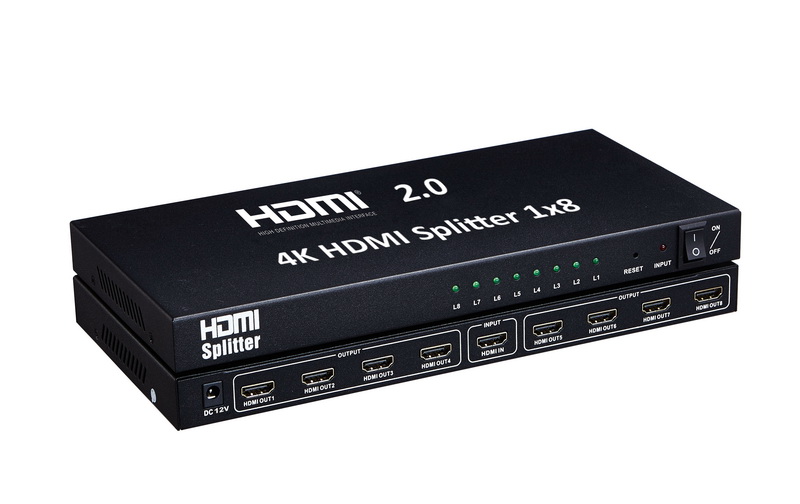

The 1x8 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI
devices to be split easily to eight HDMI compatible monitors or projectors. In addition,it can be placed
at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can
be up to 4096X2160/60HZ.
FEATURES
1. Support HDMI2.0 version
2. Support 3D video format
3. Support high resolution up to 4096X2160/60HZ
4. Support highest rate of 6 G and TMDS clock can be up to 600 MHz
5. Support 8/10/12 bit deep color
6. Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 15 meters,0up to 25 meters.
when the resolution is 4K, input up to 12 meters, output up to 15 meters.
7. Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player,
A/V receiver, set top box and etc.
8. 12V/2A power adapter
Specifications:
HDMI version ………………………………………………………………………………. HDMI 2.0
HDMI resolution ……………………………….. ……….. ……….. …………up to 4096*2160/60Hz
Support video format ………………………………..…………………………8/10/12bit Deep color
Support audio format………………..………. …….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth………………………………………………………………………………….600MHz
Max baud rate……………….…….………………….…………………………………………..6Gbps
Input cable distance.…………………………….(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance…………………………(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable
Max working current……………………………………………………………………….....1.58 A
Power adapter format………………….input AC (50HZ, 60HZ) 100V-240V; output: DC12V/2A
Operating Temperature range…………………………..…………….………………(-15 to +55℃)
Dimension (L x W x H)………………...............……………………………….276x136x24 (mm)
