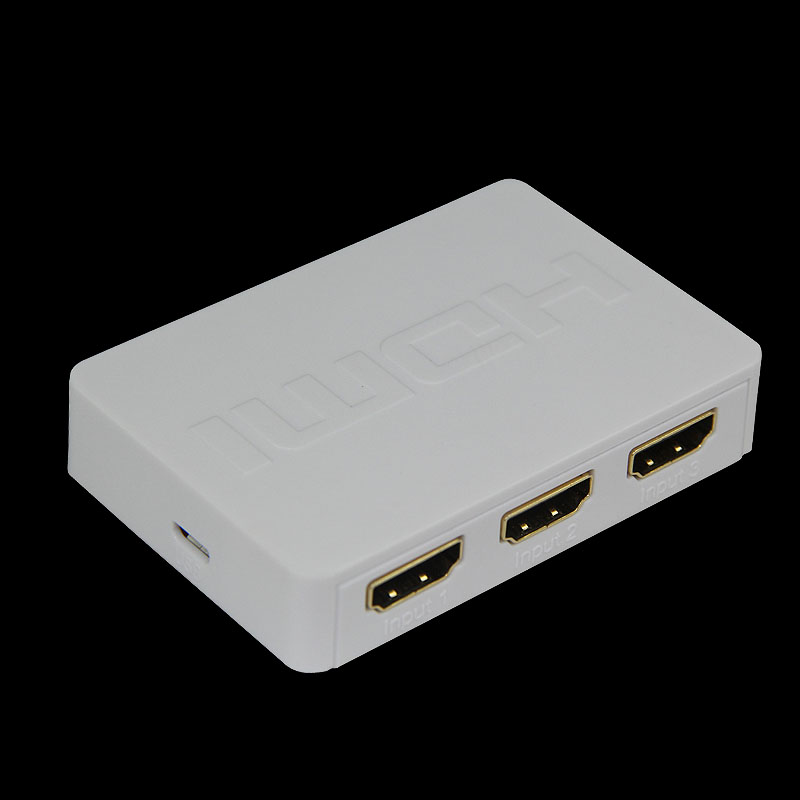

Mini HDMI Switcher 3X1 Support 3D
Introduction:
The 3- Port HDMI switch allows 3 HDMI ports to be switched to a single display terminal via remote control or
buttons on unit. The switcher can be also placed at the end of a long HDMI cable to regenerate the HDMI signal.
This HDMI Switch supports video formats including 720p, 1080i , 1080p.
Features:
1. Support 2.5Gbps data rate for tmds clock up to 250MHz
2. Support HDMI1.4A
3. Support 3D
4. Supports highest video resolution 1080p/60Hz
5. Support UXGA,WUXGA
6. Support 8/10/12 bit deep color
7. Support AWG26 HDMI standard cable,Input up to 15metres ,output up to 25metres
8. Supports single high definition display for multiple sources, such as DVD Players
and Satellite Receivers, Digital Projectors, A/V Receivers, Set Top Boxes
9. USB cable for charging
Specification
HDMI version …………………………………………………………………….. HDMI 1.4A
HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..……… 8/10/12 bit deep color
Support audio format……………….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………………………………….250MHz
Max baud rate……………….…….………………….…………………………………..2.5Gbps
Input cable distance..…... …………………………..……≤15m AWG26 HDMI standard cable
Output cable distance………………………………….…...≤25m AWG26 HDMI standard cable
Max working current……………………………………………………………………….....500mA
Operating Temperature range……..…………….………………………………… (-15 to +55℃)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation) |
