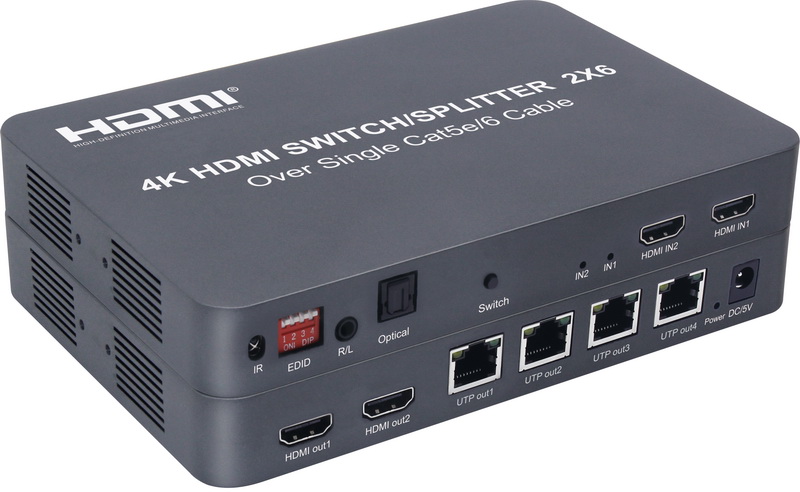

4K 2X6 HDMI Switch/Splitter Over 100M Single Cat5E/6 Cable Extender

Introduction :
This 2x6 HDMI Splitter/Extender over single Cat 5E/6 connect 2 HD signals sources
with multiple HD display terminal,It can easily split any HD signal to more than one HDTV
or projector which support HD. And it can extend HDMI signal up to 100-120m by one
cat5E/6(need to be used with RX receiver)

Features :
1.Long distance transmission up to 100M
2.Video transmission up to 4K/30Hz,and support 1080/720 format etc.
3.Support 4-ways UTP extension

SPECIFICATIONS :
SPECIFICATIONS :
HDMI version …………………………….…….....……………….......….. HDMI 1.4/HDCP 1.4
HDMI resolution …………………..……............. 4k/1080p/1080i/720p/576p/576i/480p/480i
Support video format ………………………......….......……..……….. 24/30/36 bit deep color
Support audio format ………………..………. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI input port .......………………………………….………………………….….........…….. 2
HDMI output port .......……………………………….…………………………….….......…….. 2
RJ45 port ........………………………........……….………………………………...........…….. 4
Max bandwidth ...……………………………..…………………………………………. 340MHz
Max baud rate ……………….…….………….……….…………………………… 3.4Gbps x10
Input cable distance .………………...... AWG26 HDMI 1.4 standard cable up to 15 meters
Output cable distance ..…………................… Cat5e/cat6 standard cable up to 100 meters
Max working current ……………………….......………….………………………….... 1600mA
Power adapter format …………............... AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range ………...…….....………..…………………… (-15℃ to +55℃)
Dimension (L x W x H) ………...............…….….……………….....…….189x129x25.3 (mm)
Weight …….…..……………………………………..….……..…….…………………........ 437g

SPECIFICATIONS :



Channel switching operations:

1. LED indicator light:
When L1 indicator lights up,the selected channel is Input 1;
When L2 indicator lights up, the selected channel is Input2.
2. RX indicator light:
When any HDMI input port has signal input ,the RX indicator lights up
3. Button operation instruction
“Select” button: Input channel selection key.

Application diagrams



Operating and Connecting :

1. Use HDMI cable connect the HD signal source to the input of HDMI Splitter/Extender.
2. Use HDMI cable connect the HD displayer device to the output of HDMI Splitter/Extender.
3. it can extend to 100-120 meters between receiver and transmitter by using cat5E/6 cable
instead of HDMI cable.
4. Connect 5V/2A power adapter with the HDMI Splitter/Extender.

Accessories :
1. 2x6 HDMI Splitter/Extender                     1PCS
2. IR Remote Control                                   1PCS
3. Power adapter                                         1PCS
4. User Manual                                            1PCS
5. RX/Power adapter (optional)
