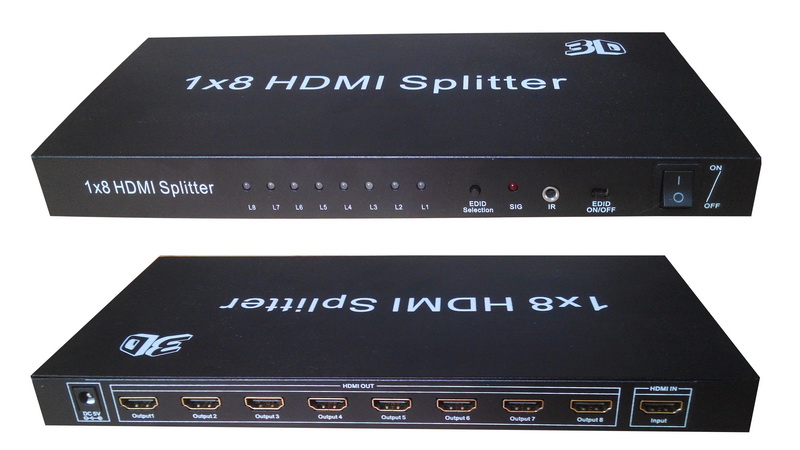

This 1X8 4Kx2K HDMI Splitter with IR is one of our latest versions that allows one HDMI source to be connected to
eight HDMI displays simultaneously. You can enjoy the same high performance of eight displays up
to 4K x 2K. Furthermore, 1X8 4Kx2K HDMI Splitter with IR has the capability of being controlled via IR signals. An optional IR TX
and RX pigtail is needed, then you are free to control your device from the display.
1X8 4Kx2K HDMI Splitter with IR offers solutions for HDTV, STB, DVD, home theater, projector manufacture plant environments testing,
data center, information distribution, conference room presentation, school and corporate training environments,
AV installation, and the area where have noise.
II. Feature
• HDMI, HDCP 1.2 and DVI compliant
• Support full 3D pass-through
• Support 4K x 2K high resolution
• Super IR control system, IR transport channel can be forward or backward per your installation
• Support CEC bypass
• External and internal EDID settings
• Deep color video up to 36bit
• HDCP keysets allows each output to work independently when connecting to a HDMI display.
• Splits a HDMI source up to eight outputs without signal loss..
• Support a wide range of PC and HDTV resolutions from VGA to UXGA, and 480i to1080p 24fs. .
• Automatically scanning input status by LED on front panel
• 5V DC, UL listed power supply, UK power supply and so on
III. Package Contents
1X8 4Kx2K HDMI Splitter with IR 1pcs
5V DC power adaptor 1pcs
Operation Manual 1pcs
HDMI IR adaptor (optional) 1pcs
HDMI Adaptor (optional) 1pcs
IV. Specification
Input Ports 1 x HDMI (Female type)
Output Ports 8 x HDMI (Female type)
Output Resolution 4Kx2K
HDMI Cable In 1080p/12bits (15m)
HDMI Cable Out 1080p/12bits (15m)
ESD Protection Human Body model: ±8 kV (air-gap discharge)
