120M HDMI Extender over Ethernet Support IR Extender Function

1.Introduction

2.Specifications

3.Package Contents

4.Panel Descriptions

5.Connection and operation

6.Application diagram


1.Introduction

HDMI Over Ethernet is based on TCP/IP standard. It transmits your HD display with the high resolutions up to 120 meters
away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of
TCP/IP standard,you can extend your HD video to multiple displays by using an Ethernet Switch.

HDTV Resolutions

480p,576p,720p,1080p

Audio

Sample rate:32kHz,44.1kHz,48kHz

IR remote control

38kHz;NEC

HDMI

HDMI 1.3

HDCP

HDCP 1.2

Power adapter

Input: 100V-240V(50-60Hz)   Output:5V/1A

Power consumption

HDMI Sender:3W    HDMI receiver:3W

Size(L-W-H)

92x79x20mm

Weight

240g x 2

Operating Temperature/Humidity

0℃-70℃/10%-80%RH(no condensation)

Storage Temperature/Humidity

-10℃-80℃/5%-90%RH(no condensation)

2.Specifications

1. Following TCP/IP standard.

2. Support HDMI1.3 protocol.

3. HDCP1.1 & 1.2 protocol compliant

4. Support point-to-point mode, one point-to-many mode and cascade connection mode.

5.Support IR extender function allows IR remote control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.

 3.PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure the

following items are contained in the shipping carton:

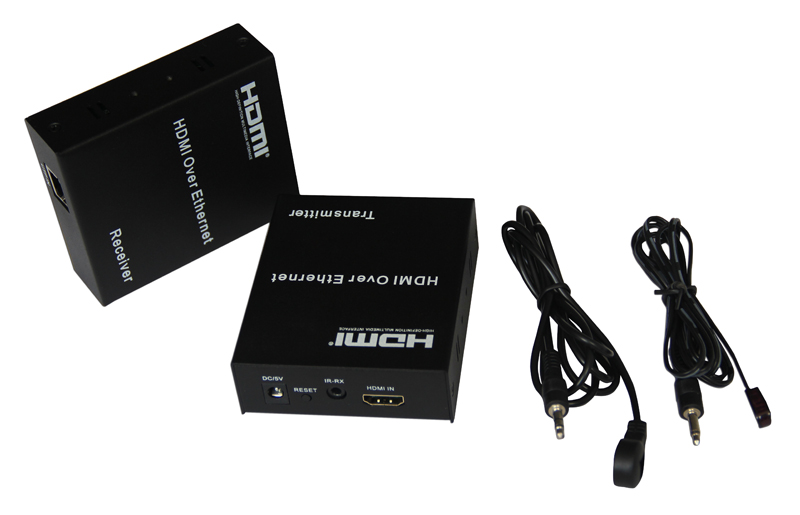

1)  Main unit No. 1 Sender , Main unit No. 2 Receiver

2)  Two pieces of 5V DC Power Supply.

3)  one piece of IR transmitter and one piece of IR receiver

4)  User’s Manual

4.Panel Descriptions

HDMI Transmitter



5V/1A

Supply power for the Transmitter

Reset

Hold down the key,the model will re-start

IR-out

Connect IR transmitter this Port

HDMI-in

Connect HDMI sink source to this Port

HDMI Receiver


5V/1A

Supply power for the Receiver

Reset

Hold down the key,the model will re-start

IR-in

Connect IR Receiver this Port

HDMI-out

Connect HDMI sink device to this Port

5.Connection and operation

1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI IN of Sender.

2) Connect the IR sender to the Sender IR OUT Port, and Be Directed at HDMI video source’s IR receiver.

3) Connect the HDMI out of Receiver to HDTV display.

4) Connect the IR receiver to the Receiver IR IN Port.

5) Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.

6) Plug two pieces of 5V power supply into the Sender and Receiver.

7) Power on the HDTV display and HDMI source.

6.Application diagrams

Application 1:


Application 2:
