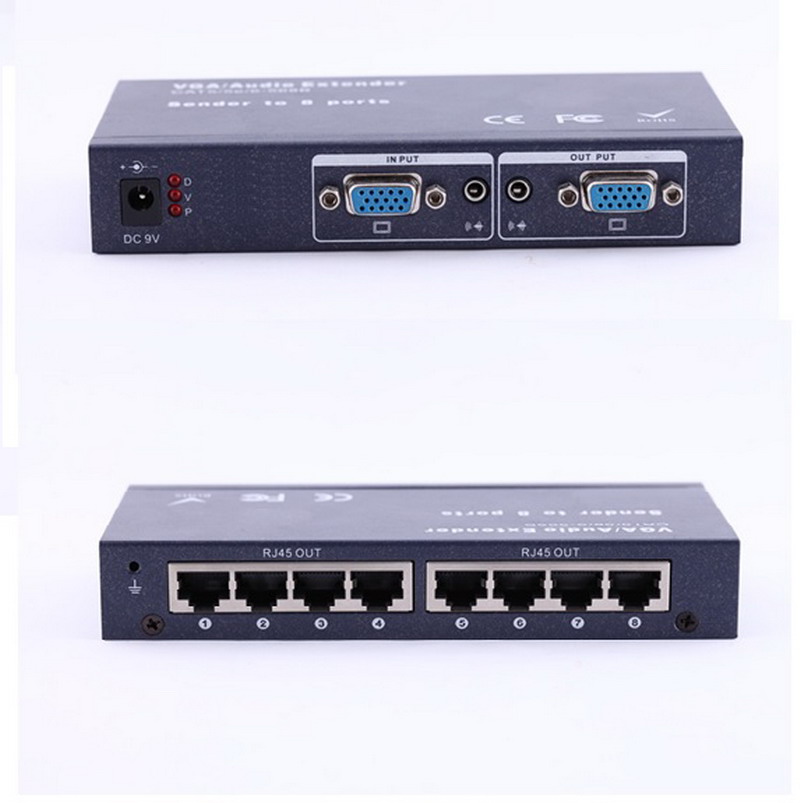

This product is 8 channel active VGA Video & Audio transmitter allowing remote transmission of high-resolution VGA video and high-fidelity audio over UTP cable.
Features:
1.350MHz signal transmission bandwidth.
2.Transmission distance up to 150m working with UTP801AR-150.
3.Transmission distance up to 300m working with UTP801AR-300.
4.Support VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors.
5.High video resolution up to 1600×1200 pixels.
6.Built-in surge&transient protection.
7.Super interference rejection.
Specifications
Power properties
Power Supply
12V DC(power adaptor)
Power Consumption
<20w
Power Switch
Support
Video
properties
Video Input Connector
1* blue 15pin HD15 male; Impedance: 75Ω
Local Video Output Connectors
3* blue 15pin HD15 female; Impedance: 75Ω
UTP Cable Connectors
8* RJ-45; Impedance: 50Ω
Signal Transmission Band
>350MHz(-3db)
Linear Distortion
<3%
R,G,B Signal Distortion
<2ns
Common-mode Interference Rejection
65db(typical)
Synchronous signal
0-5V,TTL PWL
Synchronous signal band
1K-200KHz
Synchronous Signal Delay
<15ns
DDC2
Virtual DDC
Audio properties
Connectors
2* 3.5mm Audio Jack
Input Impedance
10kΩ
Output Impedance
600Ω
Transmission Band
10-20KHz
Protections
Lightning Protection
1000V, 10/700us
IEC61000-4-5
ESD
Contact Discharge:2000V
Air Discharge:4000V
IEC61000-4-2
