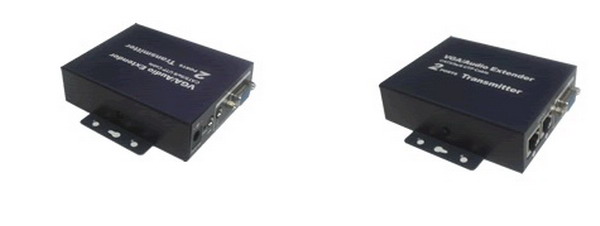

Description：This product is 2 channel active VGA Video & Audio transmitter allowing remote transmission of high-resolution VGA video and high-fidelity audio over UTP cable. In addition,This product provides one channel VGA Video & Audio output for local use.
Features:
1.350MHz signal transmission bandwidth.
2.High video resolution up to 1600×1200 pixels.
3.Powered by either power adaptor or optional USB power.
4.Transmission distance up to 150m working with UTP801AR-150.
5.Transmission distance up to 300m working with UTP801AR-300.
6.Support VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors.
7.Built-in surge&transient protection with grounding rod on front panel.
9.Super interference rejection.
Specification
Power properties
Adaptive Voltage Arrange
12V DC(power adaptor)
Power Consumption
<3.5w
Connectors
DC Jack,USB-B
USB Protecting Current
1000mA
Video
properties
Video Input Connector
1* 15pin HD15 male; Impedance: 75Ω
Local Video Output connector
1* 15pin HD15 female; Impedance: 75Ω
UTP Cable Connector
2* RJ-45; Impedance: 50Ω
Signal Transmission Band
>350MHz(-3db)
Linear Distortion
<3%
Synchronous signal
0-5V,TTL PWL
Synchronous signal band
1K-200KHz
DDC2
Virtual DDC
Audio properties
Connectors
2* 3.5mm Audio Jacks
Input Impedance
10kΩ
Output Impedance
600Ω
Transmission Band
10-20KHz
Physical
Properties
Dimensions (LWH)
210*85*32mm
Housing Material
Metal
Color
blue
N.W.
540g
Environmental
Operating Temperature
0~70
Relative Humidity(non-condensing)
10~85%
Storage Temperature
-10~80
Accessories
Power Adaptor
Power supply input: 100-240V AC
Power supply output: 12V DC/ 1Amp
Wire Length:2m
