100M VGA Audio CAT5 Extender With Adaptive and Local VGA Loop-through Function VE100L
Product Description
：
100M VGA Audio CAT5 Extender With Adaptive and Local VGA Loop-through Function
VGA Audio CAT5/UTP/STP Extender

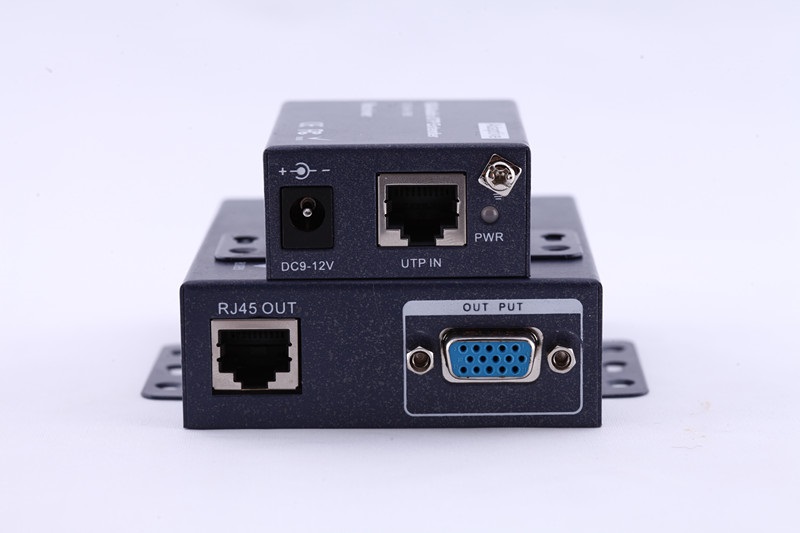

The 100M VGA Audio Extender transmits VGA video up to 1200 feet (100m) away from a computer using CAT5/5e/6 cable. Each video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitor.
· Ideal solution for digital signage applications.
· Supports local and remote VGA monitors.
· Supports resolutions to 1920x1440.
· Sharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturer.
· Built-in lightning and ESD surge protection.
· Available with optional stereo audio or RS232 control.
· Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.
· Optional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitor.
Specification
· Local Unit
o Host Connection
o Multiplatform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
o Male/Female 15-pin HD connector for computer connection.
o Optional RS232 support - female 9-pin D connector.
o Optional stereo audio support - 3.5mm stereo plug.
o Local Access
o Crisp and clear 1920x1440 video resolution.
o Female 15-pin HD connector for local VGA monitor.
o Optional stereo audio support - 3.5mm stereo jack.
· Remote Unit
o Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at different lengths.
o Female 15-pin HD connector.
o Optional 3.5mm stereo audio connection.
o Optional male 9-pin D connector for RS232.
· Video Quality Adjustment
o Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extender.
o Test Pattern for Cable Length.
· Environmental
o Operating temperature: 32°F to 100°F (0°C to 38°C).
o Storage temperature: -20°F to 140°F (-30°C to 60°C).
o Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.
· Dimensions
o WxDxH (mm): 95*97*28mm(Sender)
64*45*23mm(Receive)
o Weight(g):0.8KG(With packaging)
· Power
o 220 or 110 VAC at 50 or 60 Hz via AC adapter (Included).
o Power Consumption: 6W (each - local and remote unit).
o Use the PWR-48V-9V0,6A or PWR-12V-9V0,6A DC-DC power converter to install the local unit in a Telecom environment.
Schematic connection Picture:
Package:
1. 1 pair 100m VGA extender(1xTransmitter,1xReceiver)
